The more compact of the Wharfedale Diamond 12 series floorstanding options, the Diamond 12.3 Floorstanding Speakers loses none of the accuracy and musicality of the standmount options. With enhanced presence and power. The Diamond 12.3 is refined and the perfect, affordable speaker for 2-channel hi-fi systems.

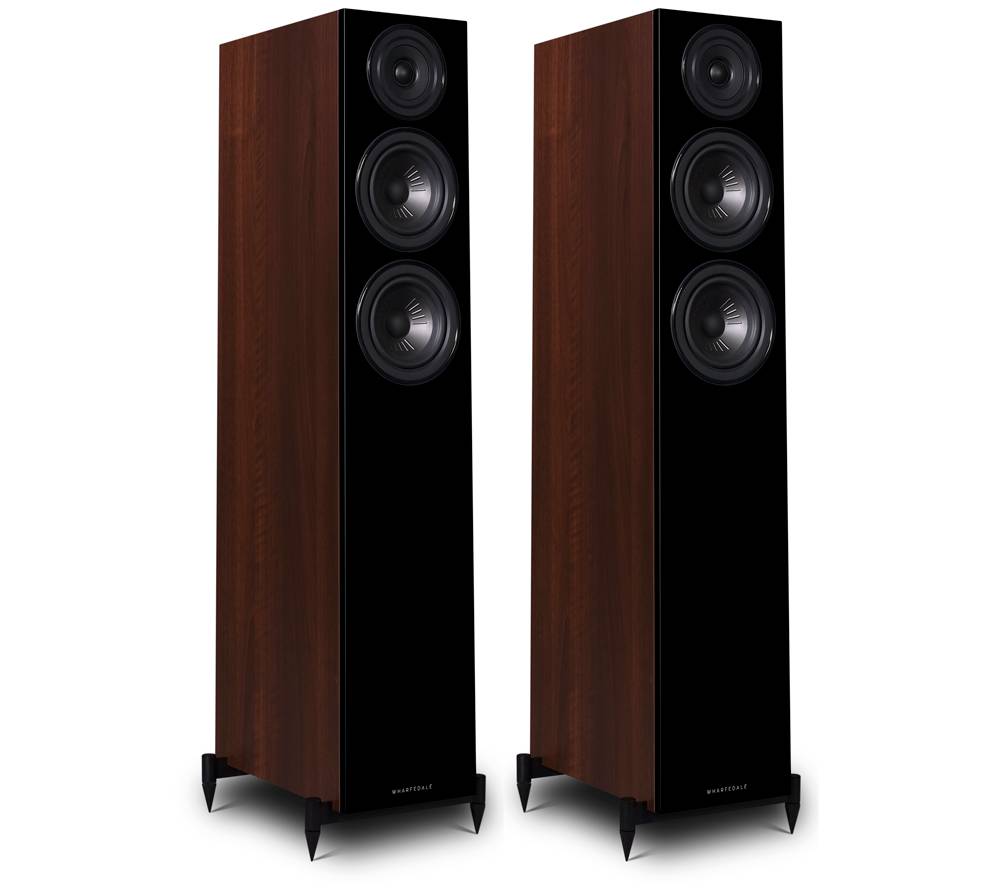

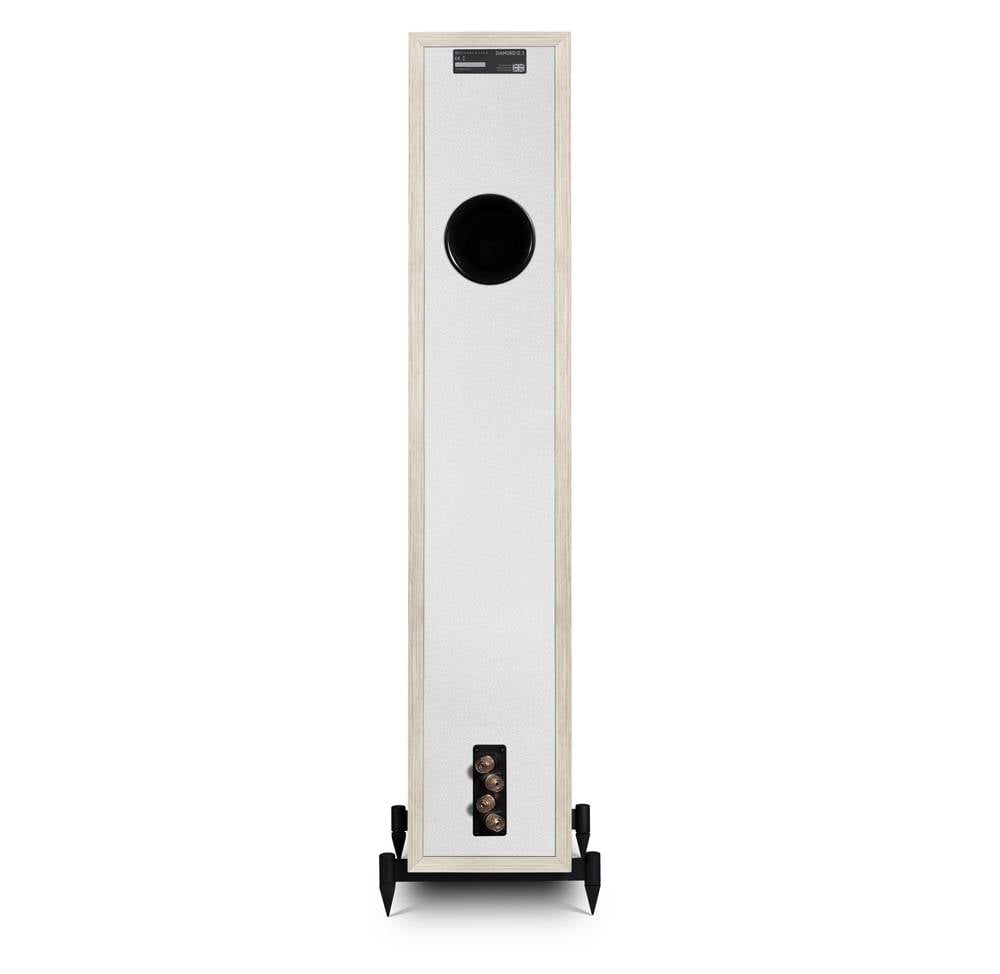

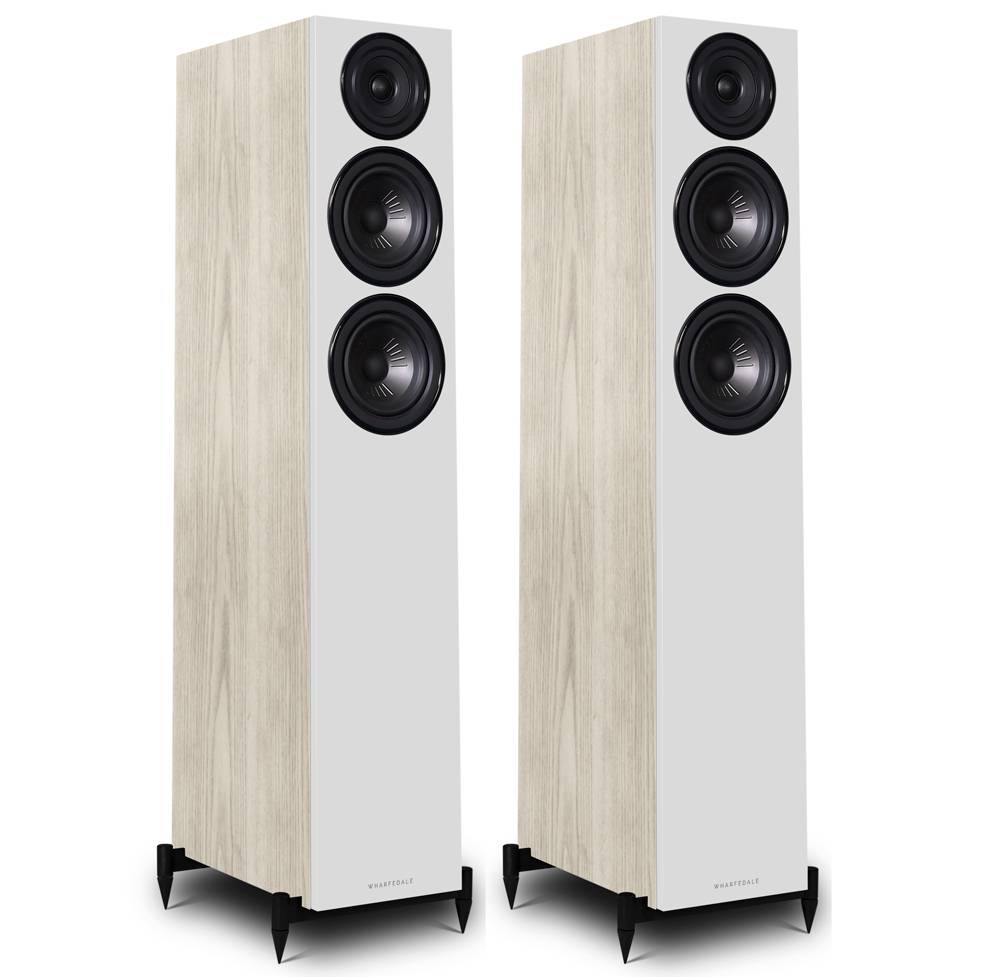

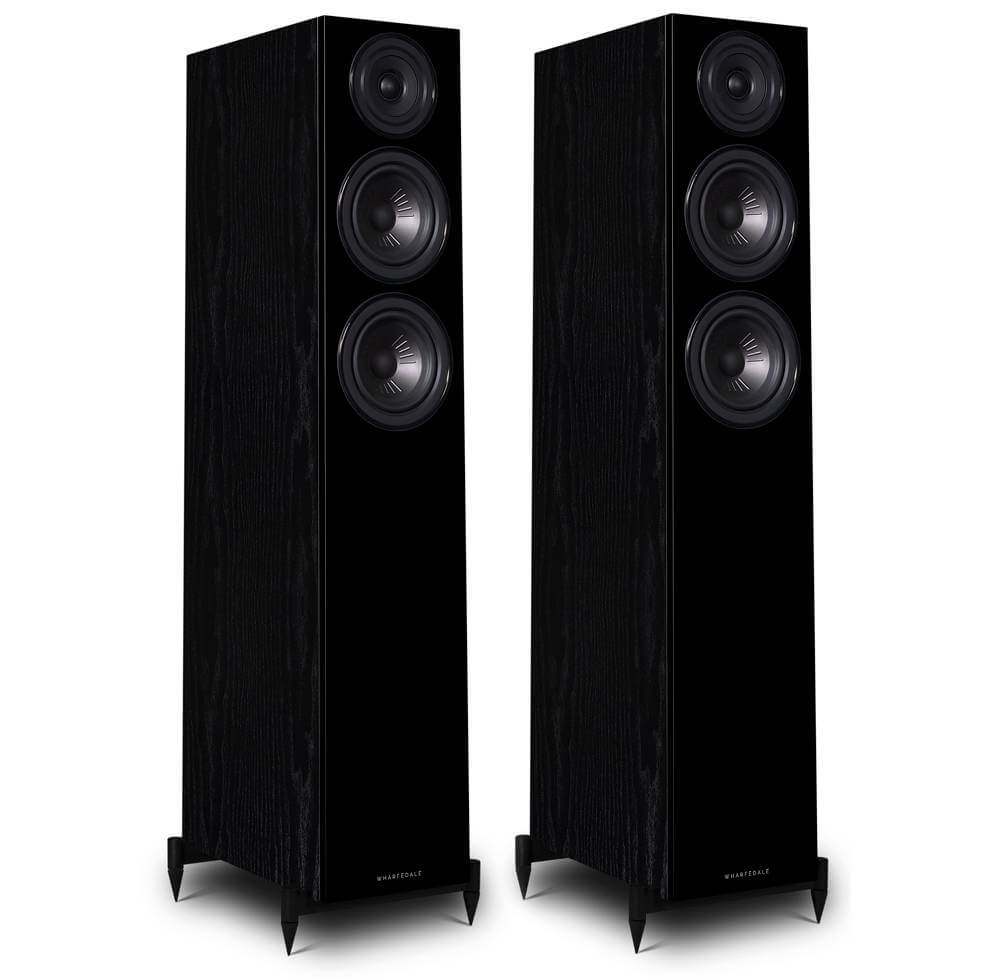

Wharfedale Diamond 12.3 Floorstanding Speakers
Configured in a 2.5-way system with exception crossover technology, the Diamond 12.3 utilises dual 5-inch Klarity drivers for impactful yet refined mid-range and bass frequencies, while the 1-inch dome tweeter delivers open and smoothly extended high frequencies.Klarity Polypropylene Cones
As with all Diamond 12 models, the Diamond 12.3 uses the famed Klarity polypropylene cones. Which are renowned for their characteristically low distortion and controlled ‘breakup’.Outstanding Sound Reproduction
To make Klarity, Wharfedale adds mica to the formulation. This increases stiffness compared to polypropylene alone and reduces flexing. This creates a lightweight cone with high rigidity, low colouration, and lightning-fast response—ideal for both accuracy and outstanding sound reproduction.A Magnet of Forces
A substantial, precision-made magnet system drives Klarity diaphragms, with an aluminium compensation ring to minimise the effect of variations in inductance as the voice coil travels. This contributes to an absence of distortion and intermodulation generated by the motor system.A Voice Coil beyond This Class
The voice coil winding is a high-power epoxy/glass fibre bobbin—highly unusual in speakers at this price level. This has the advantage of not adding eddy currents and delivering greater power handling than an aluminium bobbin, while also being much stiffer than the Kapton type.25MM Tweeter
The 25mm dome is made from a woven polyester film with a high-loss coating to deliver open and smoothly extended high frequencies. The magnet system and the front plate are optimal for wide dispersion and uncompressed behaviour. The front plate is flat and exposes the dome as much as possible, with a short duct to balance the acoustic load and improve the SPL (sound pressure level) measurement.Cabinet Bracing
Inside the cabinet, Intelligent Spot Bracing connects opposing walls with a specific form of wood brace to reduce cabinet resonance. These braces are precisely modelled by computer simulation to improve upon the ‘figure of eight’ brace. Which can transfer resonance from one wall to another.Features and Benefits
- Rich and Detailed Sound: Listen to every beat, note, and sound in your music or video.
- Large Dynamic Driver: It plays loud. The base and middle reproduction is excellent sound quality.
- Soft Dome Tweeter: Outputs the highs with an audible, defined top end.
- Sturdy Construction: One of the ways of getting rid of the noise influence for the purest sound.
- Elegant Design: Suits your interior quite well.
- Easy Integration: The product is compatible with all audio systems and is user-friendly.
Technical Specifications
- Speaker System: 2.5-way
- Dome Tweeter: 1″ (25mm) Textile Dome
- Midrange: 5″ (130mm) advanced PP Cone
- Woofer: 5″ (130mm) advanced PP Cone
- Frequency Response: 45Hz – 20kHz
- Sensitivity: 89 dB
- Impedance: 8 ohms
- Dimensions (H x W x D): 975 x 180 x 348mm
- Weight: 19.5kg (each)
